Release notes *2.5.9*
June 15, 2024
It contains the major improvements for NeuralNet standard package, provides more features for graphics and insets. We also fixed many bugs in wljs-export-html and in WXF deserializer. New examples are available in Animation folder.
Inset
An update for Inset expression
Now you can put any expression on top of your Graphics object. Please, make sure this expression supports WLJS Execution Enveroment (see top line of reference
)
For example
Plot[x, {x,0,10}, Epilog->{Inset[EditorView["(*FB[*)((1)(*,*)/(*,*)(2))(*]FB*)"], {3,5}, {10,30}, {1,3}]}] (*VB[*)(FrontEndRef["3ca22e97-4a4d-4068-b58a-dc793fdfd51b"])(*,*)(*"1:eJxTTMoPSmNkYGAoZgESHvk5KRCeEJBwK8rPK3HNS3GtSE0uLUlMykkNVgEKGycnGhmlWprrmiSapOiaGJhZ6CaZWiTqpiSbWxqnpaSlmBomAQCF1hYI"*)(*]VB*) Or even put a mermaid diagram using virtual cells
mermaid = CellView["graph LR
A[Square Rect] -- Link text --> B((Circle))
A --> C(Round Rect)
B --> D{Rhombus}
C --> D", "Display"->"mermaid"];
Plot[x, {x,0,10}, Epilog->{Inset[mermaid, {2,5}, {10,30}, {7,4}]}] (*VB[*)(FrontEndRef["a0bb8b0e-c9e3-4c62-8ce0-b72f9844cf6f"])(*,*)(*"1:eJxTTMoPSmNkYGAoZgESHvk5KRCeEJBwK8rPK3HNS3GtSE0uLUlMykkNVgEKJxokJVkkGaTqJlumGuuaJJsZ6VokpxroJpkbpVlamJgkp5mlAQCR6BY5"*)(*]VB*) Slides now supports scripts
All inline JS scripts provided in slide cells will be executed. Use them for whatever ideas you come up with.
Tube now supports dynamics
3D graphics primitive Tube now can be coupled to a dynamic symbol, as an example check this out 😉
(*BB[*)(* Just run this cell *)(*,*)(*"1:eJxTTMoPSmNhYGAo5gcSAUX5ZZkpqSn+BSWZ+XnFaYwgCS4g4Zyfm5uaV+KUXxEMUqxsbm6exgSSBPGCSnNSg9mAjOCSosy8dLBYSFFpKpoKkDkeqYkpEFXBILO1sCgJSczMQVYCAOFrJEU="*)(*]BB*)
RandomIntegerVectorWithinBox[min_List, max_List] := Table[
RandomInteger[{min[[i]], max[[i]]}],
{i, Length[min]}
]
PositionKey[pos_] := ToString[pos]
WithinBoundsQ[pos_, gridMin_, gridMax_] := And @@ Thread[pos >= gridMin] && And @@ Thread[pos <= gridMax]
IsUnoccupied[pos_, occupiedPositions_] := ! KeyExistsQ[occupiedPositions, PositionKey[pos]]
(* Main function to simulate a pipe *)
SimulatePipe[] := Module[
{
gridMin = {-10, -10, -10},
gridMax = {10, 10, 10},
occupiedPositions = <||>,
currentPosition,
positions,
lastPosition,
lastDirectionVector = Null,
directionVector,
newPosition,
axis,
dir,
possibleDirections,
triedDirections,
moveMade
},
(* Initialize the starting position *)
currentPosition = RandomIntegerVectorWithinBox[gridMin, gridMax];
positions = {currentPosition};
occupiedPositions[PositionKey[currentPosition]] = True;
(* Simulate the pipe growth *)
Function[Null,
(* Initialize possible directions *)
possibleDirections = {
{1, 0, 0}, {-1, 0, 0},
{0, 1, 0}, {0, -1, 0},
{0, 0, 1}, {0, 0, -1}
};
(* Prioritize continuing in the same direction *)
If[lastDirectionVector =!= Null && RandomReal[] < 0.5,
(* Try to continue in the same direction *)
directionVector = lastDirectionVector;
possibleDirections = Prepend[DeleteCases[possibleDirections, directionVector], directionVector];,
(* Shuffle possible directions *)
possibleDirections = RandomSample[possibleDirections];
];
triedDirections = {};
moveMade = False;
(* Try each possible direction *)
Do[
directionVector = dir;
newPosition = currentPosition + directionVector;
If[
WithinBoundsQ[newPosition, gridMin, gridMax] && IsUnoccupied[newPosition, occupiedPositions],
(* Valid move found *)
positions = Append[positions, newPosition];
occupiedPositions[PositionKey[newPosition]] = True;
lastDirectionVector = directionVector;
currentPosition = newPosition;
moveMade = True;
Break[];
];
AppendTo[triedDirections, dir];
,
{dir, possibleDirections}
];
If[!moveMade,
(* No valid moves, terminate simulation *)
$Failed
,
positions
]
]
]
With[{
frame = CreateUUID[],
win = CurrentWindow[]
},
Module[{
pipeFunction = Function[Null, $Failed],
pipesNumber = 0,
trigger = 1
},
EventHandler[frame, Function[Null,
With[{
result = pipeFunction[]
},
If[FailureQ[result],
With[{
segments = Unique["pipe"],
generator = SimulatePipe[]
},
pipesNumber++;
pipeFunction = Function[Null,
With[{seg = generator[]},
If[FailureQ[seg],
$Failed
,
segments = seg // N;
]
]
];
pipeFunction[];
FrontSubmit[{
ColorData[97][pipesNumber],
Tube[segments // Offload, 0.2]
}, MetaMarker[marker], "Window"->win];
]
]
];
trigger++;
]];
Graphics3D[{
Opacity[0], Cuboid[{-4,-4,-4}, {4,4,4}], Opacity[1], MetaMarker[marker],
AnimationFrameListener[trigger // Offload, "Event"->frame]
}]
]
] Neural Networks
We have finally added partial support for NeuralNet package. You can see training progress, representations of different layers and etc
(*BB[*)(* try this one *)(*,*)(*"1:eJxTTMoPSmNhYGAo5gcSAUX5ZZkpqSn+BSWZ+XnFaYwgCS4g4Zyfm5uaV+KUXxEMUqxsbm6exgSSBPGCSnNSg9mAjOCSosy8dLBYSFFpKpoKkDkeqYkpEFXBILO1sCgJSczMQVYCAOFrJEU="*)(*]BB*)
trained =
NetTrain[LinearLayer[], {1 -> 1.9, 2 -> 4.1, 3 -> 6.0, 4 -> 8.1}] trained[3] 6.04994535446167%60 NetGraph is not supported as well as some icons. We need volunteers to work on it ;) Please contact us if you know something about ML and Wolfram Language Graphics.
net = NetModel["LeNet Trained on MNIST Data"] (*VB[*)temporalStorage$145507(*,*)(*"1:eJwlkc1ymlAAhWmni06foslKoTNC0AvpTBb8KgISufyImSxALoLgRZErwmP0iWPSzTdnzu585yGp3ew7RVGXX3doadHWTVCgDv77RlEr1Cp5XOC3ER3Ib/T494j+Q49H9CP3Fy17rvQ566ZJdk6um7WriUoLxCQik3UiN2Ta6FZ13RZd4XhW7QwKhB5GfPrKX71DyxiZX6BFiWcaRrmNT5rImwKUjHNhYx/EVVmogw4uxpk3sdSnTlSd8c1JbvsK76Wj6857Z7pDVQ+APdv6ZlIvu6ZtNusF6QCBRsswSqhZAjzG58uC58VkZwqi4Os2hzrzGu3mg2jlicB2WllUcENAUg1zNvQYdWo+8VubKG6aghbXe51Z+GHiuRAxcbpayblEOCNQHe1UBvF0rlmT7el2jiBrH4+Ruc6k7HblUajLp0OQC7PVQV0aM2UC7tPDmMuP5kRhVWNZZumzUwrNRc+a5wS4kzBXeqDrd0mS8loP04jHrck+7V9eHj+dvwcyPX7/f9WPO1xSIfjzM6A4dXDVf7VeQ9AH8nGRcw=="*)(*]VB*) net[(*VB[*)(FrontEndRef["7c52eb9d-6d46-4b1d-ab0a-a2043d2ccccc"])(*,*)(*"1:eJxTTMoPSmNkYGAoZgESHvk5KRCeEJBwK8rPK3HNS3GtSE0uLUlMykkNVgEKmyebGqUmWabomqWYmOmaJBmm6CYmGSTqJhoZmBinGCWDAACODxZ6"*)(*]VB*)] 5 ok, kinda looks like 5
Some other examples
layer = NetInitialize @ LinearLayer[2, "Input" -> 2] LinearLayer%5B%28%2AVB%5B%2A%29%20%3C%7C%22Type%22%20-%3E%20%22Linear%22%2C%20%22Arrays%22%20-%3E%20%3C%7C%22Weights%22%20-%3E%20NumericArray%5B%7B%7B-0.3594474792480469%2C%20-0.04992305114865303%7D%2C%20%7B-1.127055048942566%2C%201.086535930633545%7D%7D%2C%20%22Real32%22%5D%2C%20%22Biases%22%20-%3E%20NumericArray%5B%7B0.%2C%200.%7D%2C%20%22Real32%22%5D%7C%3E%2C%20%22Parameters%22%20-%3E%20%3C%7C%22OutputDimensions%22%20-%3E%20%7B2%7D%2C%20%22%24OutputSize%22%20-%3E%202%2C%20%22%24InputSize%22%20-%3E%202%2C%20%22%24InputDimensions%22%20-%3E%20%7B2%7D%7C%3E%2C%20%22Inputs%22%20-%3E%20%3C%7C%22Input%22%20-%3E%20NeuralNetworks%60TensorT%5B%7B2%7D%2C%20NeuralNetworks%60AtomT%5D%7C%3E%2C%20%22Outputs%22%20-%3E%20%3C%7C%22Output%22%20-%3E%20NeuralNetworks%60TensorT%5B%7B2%7D%2C%20NeuralNetworks%60RealT%5D%7C%3E%7C%3E%2C%20%3C%7C%22Version%22%20-%3E%20%2214.1.2%22%2C%20%22Unstable%22%20-%3E%20False%7C%3E%20%28%2A%2C%2A%29%28%2A%221%3AeJytUMsKwjAQrI%2BLXgQ9CJ7qL3j0ptBiQSy00rORbCWQbGSboEX8d9NUqVfBy7A7M8sMuzzrrBwEQVAtHGz1PdakThsihhfguVWKUe3ostd4Jg5i0mgi5IUgY5lshaGDnZbcDweNUPY%2F9F5UpjP5zWvzr7x3TmJAFQJu%2BcxpqTVXa0IuFGAlNFbrsD0cO4i4MJq8tyn%2FWD27wMxKyEfNAIzXKcra00ey8GuPqdMS%2FHuN9ktWyhcQzmJg%22%2A%29%28%2A%5DVB%2A%29%5D NetExtract%5BLinearLayer%5B%28%2AVB%5B%2A%29%20%3C%7C%22Type%22%20-%3E%20%22Linear%22%2C%20%22Arrays%22%20-%3E%20%3C%7C%22Weights%22%20-%3E%20NumericArray%5B%7B%7B-0.3594474792480469%2C%20-0.04992305114865303%7D%2C%20%7B-1.127055048942566%2C%201.086535930633545%7D%7D%2C%20%22Real32%22%5D%2C%20%22Biases%22%20-%3E%20NumericArray%5B%7B0.%2C%200.%7D%2C%20%22Real32%22%5D%7C%3E%2C%20%22Parameters%22%20-%3E%20%3C%7C%22OutputDimensions%22%20-%3E%20%7B2%7D%2C%20%22%24OutputSize%22%20-%3E%202%2C%20%22%24InputSize%22%20-%3E%202%2C%20%22%24InputDimensions%22%20-%3E%20%7B2%7D%7C%3E%2C%20%22Inputs%22%20-%3E%20%3C%7C%22Input%22%20-%3E%20NeuralNetworks%60TensorT%5B%7B2%7D%2C%20NeuralNetworks%60AtomT%5D%7C%3E%2C%20%22Outputs%22%20-%3E%20%3C%7C%22Output%22%20-%3E%20NeuralNetworks%60TensorT%5B%7B2%7D%2C%20NeuralNetworks%60RealT%5D%7C%3E%7C%3E%2C%20%3C%7C%22Version%22%20-%3E%20%2214.1.2%22%2C%20%22Unstable%22%20-%3E%20False%7C%3E%20%28%2A%2C%2A%29%28%2A%221%3AeJytUMsKwjAQrI%2BLXgQ9CJ7qL3j0ptBiQSy00rORbCWQbGSboEX8d9NUqVfBy7A7M8sMuzzrrBwEQVAtHGz1PdakThsihhfguVWKUe3ostd4Jg5i0mgi5IUgY5lshaGDnZbcDweNUPY%2F9F5UpjP5zWvzr7x3TmJAFQJu%2BcxpqTVXa0IuFGAlNFbrsD0cO4i4MJq8tyn%2FWD27wMxKyEfNAIzXKcra00ey8GuPqdMS%2FHuN9ktWyhcQzmJg%22%2A%29%28%2A%5DVB%2A%29%5D%2C%20%22Weights%22%5D%20%2F%2F%20Normal %7B%7B-0.3594474792480469%60%2C-0.04992305114865303%60%7D%2C%7B-1.127055048942566%60%2C1.086535930633545%60%7D%7D Support for custom CSS

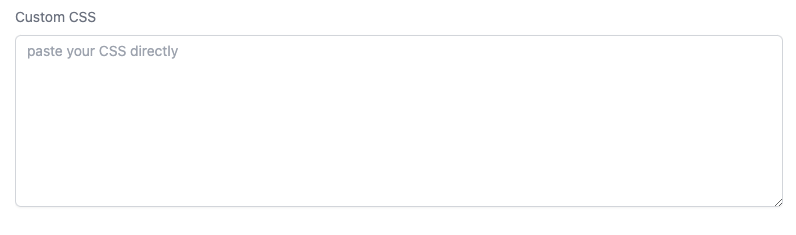

Open your settings and add any styles you want. This is a new step towards customization
Print now supports formatted output
Try this one
Print[Style["Hey", Red, 14]] (*BB[*)("Hey")(*,*)(*"1:eJxTTMoPSmNiYGAo5gcSAUX5ZZkpqSn+BSWZ+XnFaYwgCRYg4ZGfkwJRxgkkgkuKMvPSnfIr0phBQhxAIsjdyTk/J78oE6QlkwFO8AEJiEaQMUGlOanBbHATwGIhRaWpAL9wHBA="*)(*]BB*) You can also print Graphics if needed
Offset support for labels
It was always a bit of a pain to fight agains FrameLabel or AxesLabel and trying to position them. We extended the API for this (Mathematica does not have this feature)
Plot[PDF[NormalDistribution[0, 1], x], {x, -10, 10}, AxesLabel -> {
{"wavenumber (cm^{-1})", {-100,-15}},
{"absorption \\alpha", {112,0}}
}, PlotRange->Full] (*VB[*)(FrontEndRef["257a6bab-bb74-4016-b624-a40b453a2e63"])(*,*)(*"1:eJxTTMoPSmNkYGAoZgESHvk5KRCeEJBwK8rPK3HNS3GtSE0uLUlMykkNVgEKG5maJ5olJSbpJiWZm+iaGBia6SaZGZnoJpoYJJmYGicapZoZAwCDIRVZ"*)(*]VB*) Support for Entity and Quantity
We recreated boxes for them
Quantity[1, "Millimeters"/"Seconds"] (*VB[*)(q)(*,*)(*"1:eJxTTMoPSmNkYGAoZgESHvk5KWlMIB43kAgsTcwrySypdMqvyAQpgciwAomQzNzU4mCQGt/MnBwgpyS1qBghHZBfnloUzA5kBacm5+elFGf+BwIA5ecbxA=="*)(*]VB*) Entity["Country", "Germany"] (*VB[*)(Entity["Country", "Germany"])(*,*)(*"1:eJxTTMoPSmNkYGAoZgESHvk5KWlMIB4nkHDNK8ksqXTKrwhmB/Kc80vzSooqwWz31KLcxLxKAJLGDq8="*)(*]VB*) %["Population"] (*VB[*)(q)(*,*)(*"1:eJxTTMoPSmNkYGAoZgESHvk5KWlMIB43kAgsTcwrySypdMqvyFzA950lmA0oGJCaX5CTCgBVHw3o"*)(*]VB*) Support for SystemOpen
Works only if use our desktop application (not a console version)
SystemOpen[NotebookDirectory[]] Better Audio support
We also added a new snippet in the command palette
Record Voice
%28%2AVB%5B%2A%29%28Notebook%60Editor%60Kernel%60PCMAudio%60Internal%60dump%24112924%29%28%2A%2C%2A%29%28%2A%221%3AeJxTTMoPSmNkYGAoZgESHvk5KRCeEJBwK8rPK3HNS3GtSE0uLUlMykkNVgEKmyamJKUkmZnpJhoYJuqamKWY6CYmmVvqmpoYJZoYWBoaGpsmAwCODRWP%22%2A%29%28%2A%5DVB%2A%29%20%2F%2F%20AudioPlot (*VB[*)(FrontEndRef["fc127432-1b30-420d-b760-f91b0846329e"])(*,*)(*"1:eJxTTMoPSmNkYGAoZgESHvk5KRCeEJBwK8rPK3HNS3GtSE0uLUlMykkNVgEKpyUbGpmbGBvpGiYZG+iaGBmk6CaZmxnoplkaJhlYmJgZG1mmAgB2gxTV"*)(*]VB*)
