What is WLJS

The notebook interface

The notebook interface (or IDE) combines live code in Wolfram, JavaScript, and other languages. We provide GUI building blocks for user input/output, a subset of LaTeX for equations, Markdown for narrative text, and data-driven presentations.

Think of it as a multi-tool platform for research, experiments, or as a powerful sandbox where you can try out your ideas, write a story about them, and then publish them on the web. Like this one:

.md
Let's write a function to generate notes in the given scale:

scale["Major"] = {2, 2, 1, 2, 2, 2, 1};

makeScale[root_, sc_, pos_] := With[
{b = Accumulate @ Prepend[sc, root], n = Length[sc] + 1},
b[[Mod[pos - 1, n - 1] + 1]] + 12 Quotient[pos, n]
];

.md
Now we can generate any chord progressions in a major scale, for ex. **I-V-VI-IV**

chords = makeScale[1, scale["Major"], {#,2+#,4+#}] &/@ {
  1, 1, 5, 5, 6, 6, 4, 4, 1
};
SoundNote /@ chords // Sound

(*VB[*)(Null)(*,*)(*"1:eJxTTMoPSmNkYGAoZgUSwfmleSlpnCAuC5DwySwugUhywiT98ktS05iRFWSCFGSCdGdyAAnqqwepyuQBEfw0Uc8FUsoLIgRpop4NpBSuifrqUcMTAOwDUao="*)(*]VB*)

.md
Visualize it on imaginary piano

blackQ[y_] := MemberQ[{2,4,7,9,11}, Mod[y-1,12]+1];
ListStepPlot[(*BB[*)(Transpose[chords])(*,*)(*"1:eJxTTMoPSmNmYGAo5gcSAUX5ZZkpqSn+BSWZ+XnFaYwgCRYg4ZGfkwLh8QCJkKLEvOKC/OJUp/yKYJBoSBoTTGVQaU5qMFhLamJKMCeyajRFrECGa1lqXglYyK80JwcAFSsgcg=="*)(*]BB*), PlotStyle->(*VB[*)(Hue[0.03561231666487014, 0.8918383801498982, 0.8795337025157177, 1.])(*,*)(*"1:eJxTTMoPSmNiYGAo5gUSYZmp5S6pyflFiSX5RcEsQBHn4PCQNBCjmANIBLk7Oefn5BcVicky3lVWfWNfpLliouDmCxfsi/5vOjStL2qHfREDGHywBwA7SBsq"*)(*]VB*), Prolog->Flatten@Table[{If[blackQ[y],(*VB[*)(RGBColor[0.5666666666666667, 0.5666666666666667, 0.5666666666666667])(*,*)(*"1:eJxTTMoPSmNiYGAo5gUSYZmp5S6pyflFiSX5RcEsQBHn4PCQNGaQPAeQCHJ3cs7PyS8qUgKDR/aYDAAR9RPe"*)(*]VB*),(*VB[*)(GrayLevel[0.95])(*,*)(*"1:eJxTTMoPSmNiYGAo5gUSYZmp5S6pyflFiSX5RcEsQBHn4PCQNGaQPAeQCHJ3cs7PyS8qSgODd/aYDABY1RjK"*)(*]VB*)], Rectangle[{.5,y-.5},{9.5,y+.5}], (*VB[*)(GrayLevel[0])(*,*)(*"1:eJxTTMoPSmNiYGAo5gUSYZmp5S6pyflFiSX5RcEsQBHn4PCQNGaQPAeQCHJ3cs7PyS8qYoACTAYAyrgOFw=="*)(*]VB*), Line[{{.5,y-.5},{9.5,y-.5}}]}, {y, 0, 18}]]

(*VB[*)(Null)(*,*)(*"1:eJztWmtsFEUcvxYEhEJLaWoFKX0RXgEsJCTExx60UJq0cPQK0cQPLHdz14G93WN2D3uYGCXhA8Zv8kVDNKKJQQ0xBgyaGBI+SBQFJOCDRwQFgYBSA1FM8DEzuzN3u7e30zt2TQA36e7M/mf+z9/+5z9zbV6v9SUqQ6GQPgbfupCcHoAx3XwzEt96oG4kRth6oULaWHxboqqaIRtQUxMVthEPeMy29ypdeI0olEZuKzIAbXpi7LdvpS9KaCG9fso1EmSC/iC+dUIEYgbcDEylyKuIBlUjCreAnN19VJasQDIIPo5v5vCJRJf1uqZkDNCPHbNRBboOyTS7Jrubj0849NguCS3+48W3h7Zfk1D91IqzrdOvSSaf0fi2Ki3HoJFFIXoNSfleUgEgTGvxX2WIXUMSe+78h16S/X0ozPpHKHl02E4fY/Wbwia9mvfNZw3vX6L0SQ56nfVss+gP8b75bHDQpzjoj/BxJn2aY14T79+k9GYHvcVhTxvvR+vxo2NARgZUk+siCG6WDbCuX062tpeKoZqaDcu2/n3tXsdQXdiOIRZbhqG6sB1DjM4wNNOBoZnWs4b37RhidMZntgNDs61ng4M+xUFnGGpzYIhhoYn37Rhi9BaHHm28XxxDC0rF0AcvzTi6tf3gvY6hJgeGmO8ZhpocGGJ0hqF5DgzNs541vG/HEKOz2LU7MNRuPRsc9CkOOsPQbAeGGMaaeN+OIUZvcYzLYa84hhaacRmHb0t0XYtBE0R8We3LKCBKoroCJgcU/GcsU0AKqIa19HpPJCtqj7weKPaVNkrC+9TTJsU+gzSWyopzwnjc6FbjMIb1jlO6fdp4KiirZYxVaaKHnqgSa1eNGxFZBUpE0QxztrnOe0+jnwSe0SerSeAoQGw9SJghFovitPawi9uWIznlyV2no2RFB7lWKSOoJJo7BoG+CsEkVF1UpDcXB3Sn5CTI5QQ+Z6CCDSci+2EK6I53Ee1ZgKiLuzQlDlSaSiDBswsUiG4Oo0ijH2UAb7iYRJEVNbIKcCvc+FAzzmmc76gSZehIUNYJEnJGMUxx9ux7N2TV/3X0R0c7MCaH8lImhSPOvMszaszMTsPInTRlaxqKQxUnPb1f0xSW2yqYoYyhI09UcIttg/ibbgxpAyufS7JRnM+ot3KcIni1cBkAOfPAJFSGClJODRkQk12cWCQ55ith16jkcTyr4HUzBQn4dM+sMoqkjY7lipwsmnZJoxcYsglsbxwQ060UwwFlN4Iup51ZVU7hHTF5uVJTnRKJJngBBYOequcHU69i7A2QJuudY+wEYibSMmmuVc5cU2lToyJKe+6v7b1GgcYdmmogTdGLuVuvpplDTytylltXPNY6UZ4v8BE5jr/ApBfYTAyPsiAK4ui5uj1d57fskIoTypz/2qvk2i3l8gdRuBNgw0Ccpjeid7dqACSTNElATWrktoLXLiZbIFsq4/jRtcwOsiqLOzt6ibqfw5Tg8Ltd/3vG3Duug/TyajW6fpNpjp0An0sSWZGMppdSujpdX2J8/7N6nBpFJbl4ZPj+Gbb/qKh+XAh5L6Y0TBlDS+Hwx+y9ckby0HchGCd7eTfYeKk+IX+uCX5eDuYqxEr2CqM+2wM2A8Uq1s5JViL93lG10VSL1+UBLZ6odvdHbt8wCHW2NojTPJ1Wl/fVahk1LqMsVd7LT7SQtCaxr5dnhoLTHvtUUhasxd8vHmcd9NxwqlRLv0s5trFXy+ggoumwsJzMfcXFyhkiaFkigf2ueypE7MyVAxUeI4kkRJONSzE4IZ8NLf/L50Uhg7S0UghDF1clEAAJDaU6MkjXUK8WL7oLJXxxeonRsxJPvkT1wShx25KCYw1Cy0aLlHR5i0Av0AfyvoP8fQ7fHsFRhdbnsSBrhcnCBfn2D4uGmO6zupZ2aIqG0P7GbVdX7z+Sd7BofmBXJOHGa1j8E/T6VULv/na8d33NBQnRX1SeOOgT/2lE/cazkiXoZwmd30K+4S984n9i3+9Prtn2i4TOzH/j/YY930loZlfFrnWf+cX/4rGW038+/6OE+mgkzrFAXPWJf9++syN/2HtZQjtXTX1vx+unJTT08PZjYxZ94hN/lo6tzInjG6LXkE/8GTercZk1hnEwUIL+V3LrihWIyz7pf3s3wT12y1dfkuuC3/qvoHDH+DQbJxl+Dvuk/+zF0ztr38FuCZ+8ubprr+/41Ma9OX5D83UJDXTcvrT1As4/p04erTp16EOf+L8c2rTk41cuSeijG3+dGLzyjYR6Fq185nDDOZ/474osbD11/WuWdnD+SZ75/NOZg6eHyZ8ndHIO3onrCKiWWJuQ7YJtv+u99eTzJoXIUZgBU3iFIUtIr4w24pKj2LJIhnerMSUTB3wFx9I8KyDbci8umPzRiB744GUe4eU7CtzOPoJTyePkz6uQcNnU3IcnhZOo89IQxNfKSgbcf54Y1jHDcH71IykhmtUNkOoh55463D+uwNvkK1mjA2SNqJlRMGKiNcJ+yuFxHhDoT2vcG1RChwLTaZJ+iqhztxwE2vavEYSXlGSip5CxfS/MaurcCtWH1ydsqfMoKbdrthoHXOmtYT7QRZx5GGP7Bd/LkyXLPOCviZK3uFtBmCiQiemFhUMLvXDhX9Ao2eZbAvkjw/7bLJLp6ufywzoy7C2uKgATRTIxPdCwVgnk1wZgs0imq5/LD2utQFx9ACaKZLq6tXwT6wXiJgdgokhmfcDInSyQ3xiAzSKZrn4uP6yNAnHNAZgoktkYcFibBfJbA7BZJNPVz+WHtVUgbnoAJopktgYc1ukC+TMCsFkk09XP5Yd1hkDcrABMFMl0dWv5Js4SiJsTgIkimbMCRu4cgfy5Adgskunq5/LDOlcgbn4AJopkzg04rPO95b/waAA2C2S6+7nssBITPE1s999EoUxXt5ZvYrtA3IIATBTJLDhUMv/VueC/KMT/DXEn/xL0Lx60es4="*)(*]VB*)

WLJS is more than just a REPL or Jupyter clone ducktaped on Wolfram Engine; it provides its own standard libraries, runtime, UI kit and implements all manipulate features, graphics, sound from scratch allowing it to run expressions even without a kernel, just in the browser:

Manipulate[ParametricPlot[{Sin[u] u , Cos[u] u},
{u, 0, t}, PlotPoints -> 125, Axes -> False, MaxRecursion -> 0,
PlotStyle -> Thick], {t,10,100,10}, ContinuousAction->True]

(*VB[*)(FrontEndRef["243bf338-3fd1-494e-897f-7baf372bfca3"])(*,*)(*"1:eJxTTMoPSmNkYGAoZgESHvk5KRCeEJBwK8rPK3HNS3GtSE0uLUlMykkNVgEKG5kYJ6UZG1voGqelGOqaWJqk6lpYmqfpmiclphmbGyWlJScaAwCAaBXf"*)(*]VB*)

Under the hood

A combination of native and web-technologies allows WLJS Notebook to run remotely on a server or on a desktop computer.

We heavily rely on Javascript and HTML for 3 reasons:

1. It is safe sandbox for experiments and research
2. Easy access to GPU resources and fantastic libraries for data-visualization
3. The interactive content of the notebook can be exported and published on web

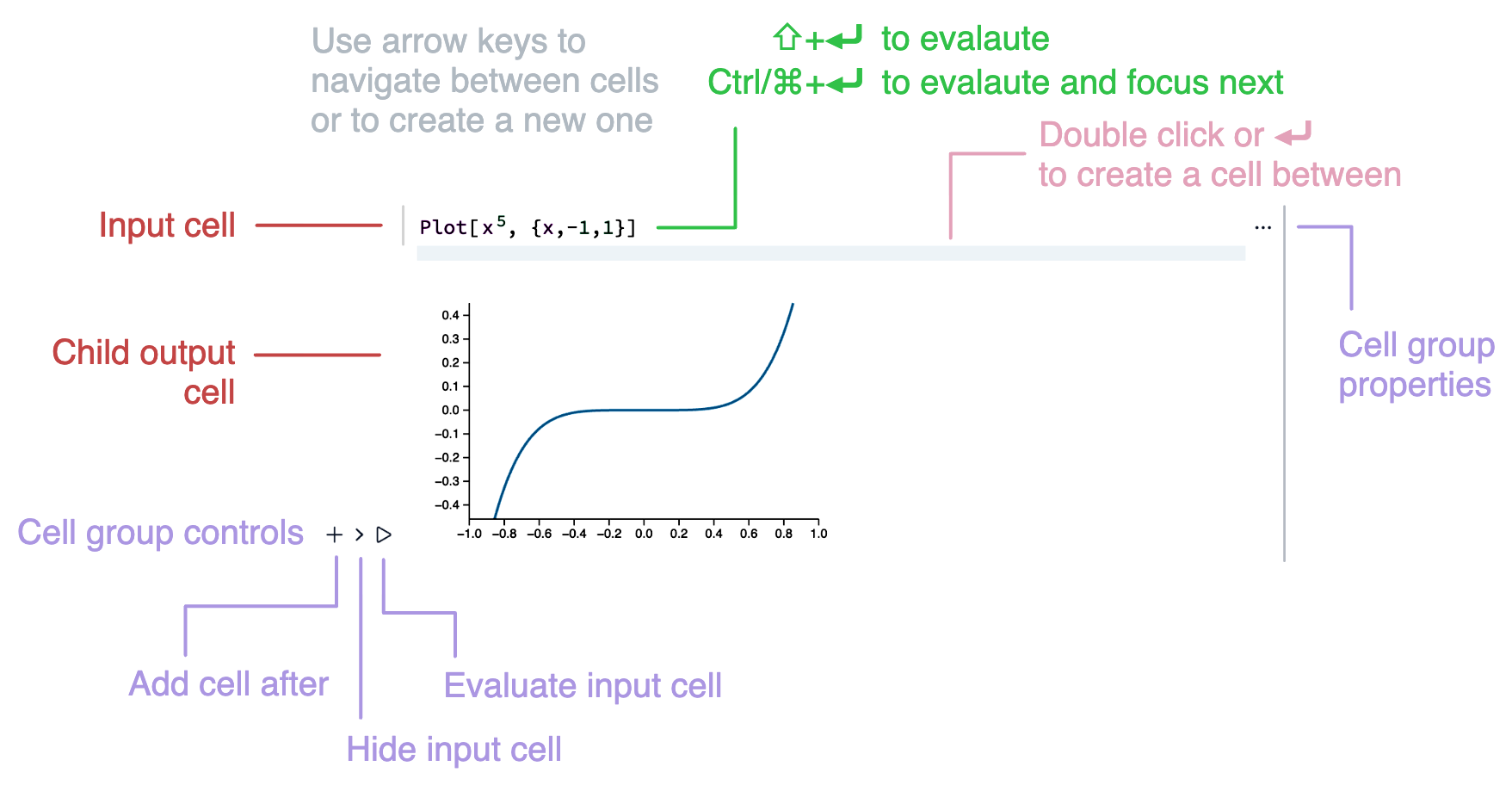

User Interface

Your notebook is a file and is an entry point for taking notes on your data, research, and processing, or even creating interactive reports in the form of presentations. You may store files inside a notebook via NotebookStore, but we recommend keeping large files in a separate folder:

The notebook consits of cells or groups of input-output cells. Input cell gives you a superpower to switch between languages or type of produced content with a single line:

1+1

.md
Here is a text note

.js
return 1+1;

.slide
# Slide

My presentation

data.txt
Write directly to a file

Think of it like an anonymous file. We intentionally avoid menus, lists to give the most space for the content you write

If nothing matches the pattern in the first line, it will assume Wolfram Language input.

After typing, press Shift-Enter or Ctrl/⌘-Enter to make the magic happen.

The output cells are results of evaluation. They can be many things: markdown rendered content, a slide of a presentation, a DOM element returned by Javascript cell or a Mermaid diagram:

{1,2,3} /. i_Integer :> Hue[i/3]

{(*VB[*)(Hue[1/3])(*,*)(*"1:eJxTTMoPSmNiYGAo5gUSYZmp5S6pyflFiSX5RcEsQBHn4PCQNGaQPAeQCHJ3cs7PyS8qYoACKOODPVwEANd+D0Y="*)(*]VB*),(*VB[*)(Hue[2/3])(*,*)(*"1:eJxTTMoPSmNiYGAo5gUSYZmp5S6pyflFiSX5RcEsQBHn4PCQNGaQPAeQCHJ3cs7PyS8qYoACdMYHewDM1w9G"*)(*]VB*),(*VB[*)(Hue[1])(*,*)(*"1:eJxTTMoPSmNiYGAo5gUSYZmp5S6pyflFiSX5RcEsQBHn4PCQNGaQPAeQCHJ3cs7PyS8qYgCDD/ZQBgMDnAEA4iUPRg=="*)(*]VB*)}

.mermaid
gantt
  section Waffle
      Iron  : 1982, 3y
      House : 1986, 3y

gantt
  section Waffle
      Iron  : 1982, 3y
      House : 1986, 3y

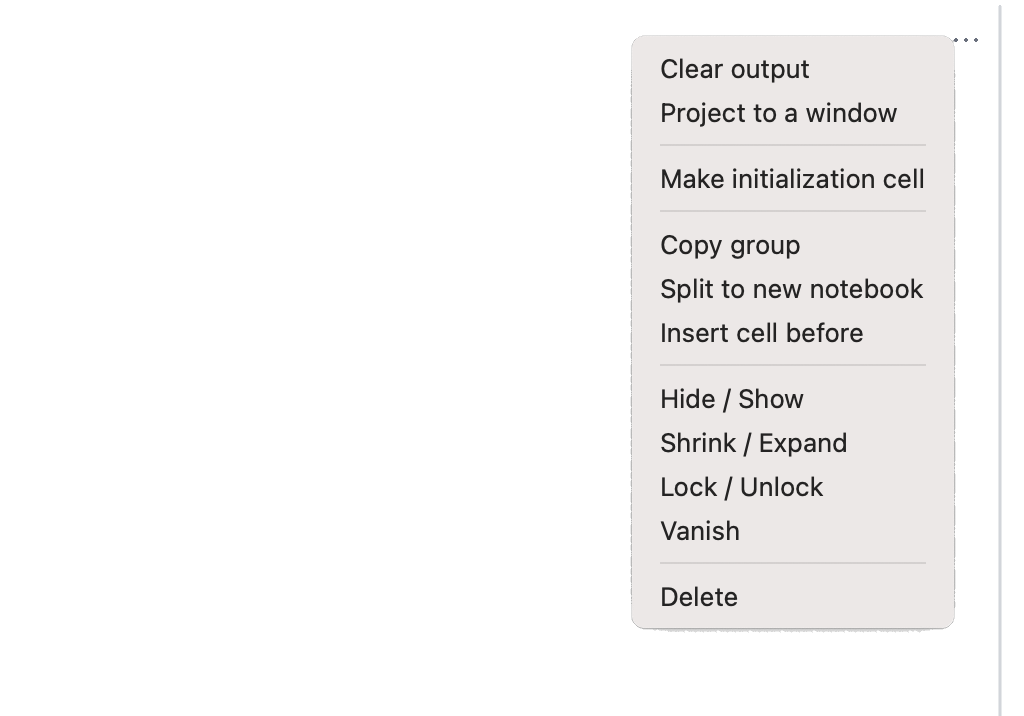

Cell group properties

Even plain text cells are evaluated and produce output. For this reason you can change the properties of the group and, for example, hide input cell for clarity:

• Clear output - removed all output cells
• Project to a window - evaluates input cell in a new window; it can be used for projecting slides, or control sliders
• Make initialization cell - marks input to be evaluated at the startup
• Copy group - copies a group as a special compressed string; paste it to an empty input cell
• Split to new notebook - cuts all cells below and inserts to a new notebook
• Insert cell before
• Hide / Show - hide or show input cell of the group; it can be used for markdown text cell
• Shrink / Expand - hides large content of the input cell
• Lock / Unlock - enables / disables editing of the input cell and hides the content
• Vanish - permanently hides input cell
• Delete - deletes the whole group

Project to a window > is a particularly useful feature that lets you evaluate a cell in a new window. This is especially helpful when presenting slides or distributing multiple controls / graphics outputs across windows.

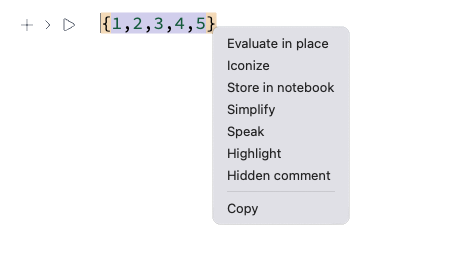

Context menu

Extended context menu provides you the following features on selected text

• Evaluate in place - evaluates selected expression and replaces it with the result
• Iconize - compresses selected expression to encoded string or to a file (depending on size) and replaces it with an icon
• Store in notebook - copies an expression to a notebook storage (see NotebookStore symbol)
• Simplify - applies Simplify on selected
• Speak - speaks any selected text using a voice synthesizer
• Highlight - highlights WL expression with yellow
• Hidden comment - turns selection into a comment in WL
• Copy

Math typesetting and shortcuts

To be honest, typing mathicamtical expressions in the most modern IDE for programming languages did not evolve since 1964. Our goal is to change that in a similar way as Mathematica did (over nearly 20 years), but in open-source.

So to style code expressions, replace them, or add additional elements in between we use decorations. The most common one for example:

(*FB[*)((1)(*,*)/(*,*)(2))(*]FB*)

used to render fractions, if you copy it to a text editor you will still see a valid expression of (1/2)

(*FB[*)((1)(*,*)/(*,*)(2))(*]FB*)

the meta information is stored safely in comments, the same works with graphical, sound or any other non-textual output. In this sense the standard output form of WLJS is decorated InputForm. Here is more complex example:

(*TB[*)Integrate[(*|*)f[x](*|*), (*|*)x(*|*)](*|*)(*1:eJxTTMoPSmNmYGAo5gUSYZmp5S6pyflFiSX5RcGcQBHPvJLUdCA3NZMRpIgVSLgl5hSnAgCQTg44*)(*]TB*)

while under the hood we have:

(*TB[*)Integrate[(*|*)f[x](*|*), (*|*)x(*|*)](*|*)(*1:eJx...metainfo*)(*]TB*)

Decorated expressions can be infinitely nested and fully navigable with keyboard input:

To assist with writing basic mathematical expressions, we provide special keyboard shortcuts to insert templates or apply formatting to selected text:

Command Palette

Use Ctrl-P or ⌘-P to access useful tools like matrix builders, color pickers, and more:

Palette items are also normal notebooks with special cells inside.

Overlay

Interactivity

Interactive elements like Manipulate, Animate, ManipulatePlot, and AnimatePlot optimize performance by using low-level, fine-grained updates that avoid full re-evaluation of expressions. Here's an example of this approach:

var = 1.0;
Graphics[{
  (*VB[*)(RGBColor[0.9324328496246868, 0.4779810744981178, 0.2076180267119551, 1.])(*,*)(*"1:eJxTTMoPSmNiYGAo5gUSYZmp5S6pyflFiSX5RcEsQBHn4PCQNBCjmANIBLk7Oefn5BcVvQqJzqq99ta+iOnxkXe20+/ZF329mWJrNfmUfREDGHywBwB/2B0I"*)(*]VB*), Rectangle[{0,-.1}, {Offload[var], .1}],
  (*VB[*)(RGBColor[0.5767811690402207, 0.576646915402451, 0.5765764507985959, 1.])(*,*)(*"1:eJxTTMoPSmNiYGAo5gUSYZmp5S6pyflFiSX5RcEsQBHn4PCQNBCjmANIBLk7Oefn5BcVLbKzP/G35JF9keDReOsnxUDG++hfJQEgBgMYfLAHAHLqHLY="*)(*]VB*), Text[var//Offload, {Offload[var + 0.05], 0}]
}, AspectRatio->0.1]

(*VB[*)(Graphics[{RGBColor[0.9324328496246868, 0.4779810744981178, 0.2076180267119551, 1.], Rectangle[{0, -0.1}, {Offload[var], 0.1}], Directive[RGBColor[0.5767811690402207, 0.576646915402451, 0.5765764507985959, 1.], FontWeight -> 800], Text[Offload[var], {Offload[var + 0.05], 0}, {1, 0}]}, AspectRatio -> 0.1, "Controls" -> False, PlotRange -> {{0, 1.2}, Automatic}])(*,*)(*"1:eJxTTMoPSmNkYGAoZgESHvk5KWkgRjEHkHAvSizIyEwuhoiACJ/M4hKEfJC7k3N+Tn5R0auQ6Kzaa2/ti5geH3lnO/2efdHXmym2VpNP2RcxgMEH+zQmkC5OkK7U5JLEvPScVIgQzNhMkLqiWTNBYOd+VDmIA9mBhH9aWk5+YkoxM5BdllgEU49kvEtmEdCCzLJULO5cZGd/4m/JI/siwaPx1k+KgYz30b9KAkAMVHeCtAaV5qQWcwEZbvl5JeGpmekZJZkKQHvTmGEqQlIrcDuNgA8Q0gE5pcVo/llpDw4NtAACGYEmDnYjN5DhWFwA9HVQYklmPlqYwJQFg0LCGeiVovyc4mJWkL8Sc4pT0cziBDsoH2hSXjpaBGGLLmMw+GwP1udYWpKfC3RBMgA53ZpC"*)(*]VB*)

EventHandler[InputRange[0,1,0.1], Function[val, var=val]]

(*VB[*)(EventObject[<|"Id" -> "71ade53b-7a60-40e5-84f3-279c2f7c5c16", "Initial" -> 0.5, "View" -> "81b5b125-693b-4830-868c-be07d724e831"|>])(*,*)(*"1:eJxTTMoPSmNkYGAoZgESHvk5KRCeEJBwK8rPK3HNS3GtSE0uLUlMykkNVgEKWxgmmSYZGpnqmlkaJ+maWBgb6FqYWSTrJqUamKeYG5mkWhgbAgB1kxTp"*)(*]VB*)

Performance

How far can we push Offload? WLJS architecture is optimized for rapid mutations, binary payloads, and streaming updates. Here are some real-time benchmarks demonstrating interactive performance:

All examples were captured using a screenrecording app on the notebook cells.

Portability

WLJS Notebook offers multiple export formats that preserve interactivity, allowing you to share your work in the way that best suits your needs:

Self-contained HTML file

Everything is embedded in a single file: all cells, internal notebook storage, and images.

No internet dependency — works completely offline and remains functional even after future updates. You can always re-import the exported notebook back into WLJS.

Best for long-term storage, sharing notes, presentations, or reports with colleagues. No external programs or plugins needed—just a browser

Embeddable HTML

Cells are converted to web components with interactivity metadata provided as JSON assets. Works both offline and online via CDN (default):

Ideal for basic blog pages and publishing notes on the web

MDX

Similar to Embeddable HTML, but adapted for JSX environments, particularly the Next.js framework. A working template is published in the repository:

Ideal for modern blogs and content platforms that support Next.js or React

Markdown

Only input cells and output text cells are converted to Markdown; all other outputs are stripped.

Best for documentation or AI engines when interactivity isn't needed

PDF

Export the entire notebook to PDF or slides only from your presentation.

Perfect for static documents, printing or projecting slides (when other options are not available)

Mini application

WLJS Notebook can be used as a runtime for mini apps. It's a single-window application that uses the full capabilities of a normal notebook (similar to Wolfram CDF or LabView programs) and runs in an isolated, generated context.

Great for distributing standalone tools

Mathematica Notebook

Convert a .wln notebook to a .nb file with some limitations.

Useful for sharing work with Mathematica users

Technology stack

Both the server and desktop applications run on the same technology stack.

Backend and frontend communicate via Wolfram expressions transported over binary or textual WebSockets.

The desktop application adds Electron Framework and Electron Builder to the mix, along with PDF.js and napi-rs/canvas for PDF generation and a bunch of native modules (electron-trackpad-utils, native-prompt) for better desktop integration.
